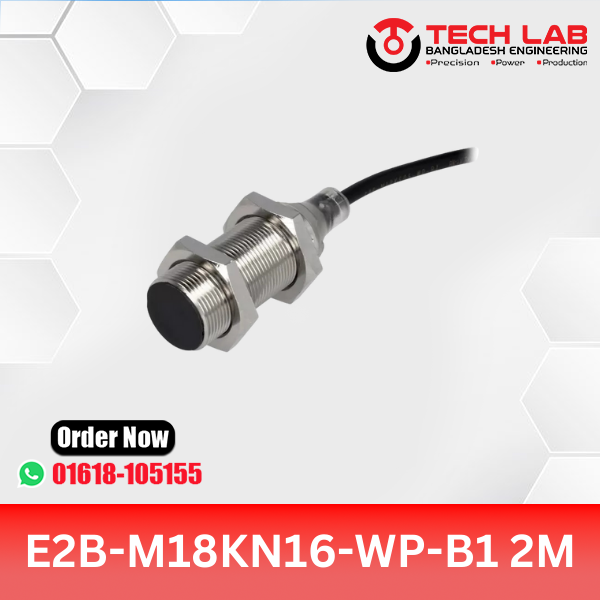

OMRON E2B-M18KN16-WP-B1 – M18 Unshielded Inductive Sensor, NPN NO Output, 16mm Sensing Distance, IP67, 2M Cable

Brand
OMRON
(0 reviews)
  • 16mm Sensing Distance – Detects metal targets at a longer range
  • NPN Normally Open Output – Common logic type for most PLC inputs
  • Unshielded M18 Sensor – Larger detection zone for open areas
  • 2M Pre-wired Cable – Ready for immediate wiring, no connector needed
  • IP67 Rated – Dustproof and water-resistant for rugged environments
Share
Top Selling Products

Reviews & Ratings

0 out of 5.0
(0 reviews)
Rate this Product
There have been no reviews for this product yet.
Description

✅ Technical Specifications:

SpecificationDetails
BrandOMRON
ModelE2B-M18KN16-WP-B1 (2M Cable)
Sensor TypeInductive Proximity Sensor
Mounting TypeUnshielded
Body SizeM18 Cylindrical (Standard Length)
Sensing Distance16 mm
Setting Distance0 to 13 mm
Output TypeNPN
Output ConfigurationNormally Open (NO)
Power Supply10–30 VDC (≤10% ripple)
Connection TypePre-wired Cable (2 meters)
Housing MaterialNickel-Plated Brass
Protection RatingIP67
Operating Temperature-25°C to +70°C
Response Frequency100 Hz
CertificationsCE, RoHS
ApplicationsPLC panels, conveyors, robotics, metal detection in industrial zones
